Description

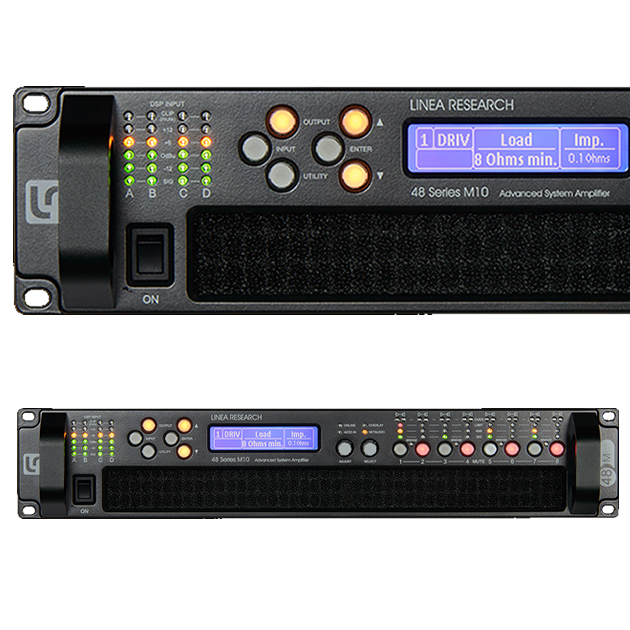

The Linea Research 48M10 is a state‑of‑the‑art 8‑channel Class D power amplifier with integrated DSP and full network control. Designed for demanding live sound, installation, and tour applications, it delivers clean, sustained power across all channels, with advanced processing, flexible input options, and robust protection features. It has 8 Output Channels — Each channel delivers 1,250 W RMS with all channels driven (at 2, 4, or 8 Ω) and channel pairs can be bridged to deliver up to 2,500 W per pair
Multi‑format Inputs — 4× analogue inputs, 2× AES3 digital inputs, with optional Dante / AES67 (factory fitted)
anced DSP & Processing — 96 kHz processing, linear‑phase crossover filters, multiband limiters, delay, EQ, gain, phase control, and more
Network Control & Monitoring — Full Ethernet interface for remote control, monitoring, preset management, system status & alarms
Power Management / Standby Modes — Auto Standby, Deep ECO sleep, instant wake on signal or network
Flexible Output Routing — Each channel can be configured for conventional 2/4/8 Ω or 70/100 V (constant voltage) distribution
