Description

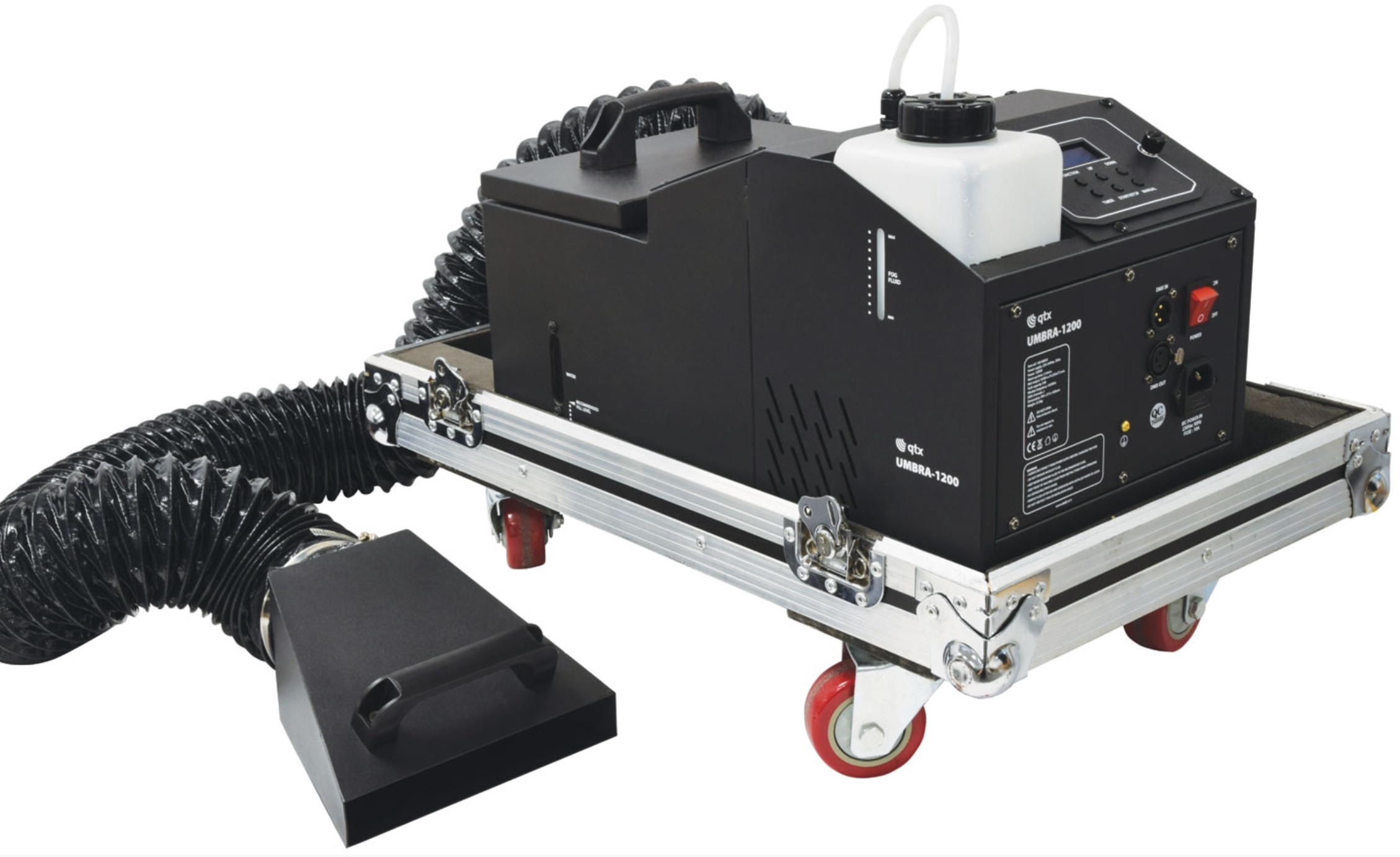

Stage effect machine producing “dry ice” type low fog effects without the use of carbon dioxide or ice. New technology delivers a ground-hugging mist from standard fog fluid and water. Housed in a full flight case with castors for portability, the main unit has a removable fluid tank and easy access water reservoir with drain tap. the mist is delivered via a flexible duct and output funnel to allow the user to direct the effect onto a specific area of the stage. Operated by the onboard digital control panel, which can be detached as a wired remote or via DMX512. Designed to provide a dramatic low flowing mist scene for stages, theatres and themed events.
Supplied in a full flight case with lockable castors
Operates from standard fog fluid and water
Requires no ice or carbon dioxide
Removable digital control panel for remote control
Professional ground level mist effect
Power supply220-240Vac, 50Hz (IEC)
Power consumption1200W
FuseF8AL
ConnectionDMX in & out (3-pin XLR), RF receiver (5-pin DIN)
DMX channels2
Remote control connection7-pin XLR
Warm up time3-5 minutes
Fluid capacity0.8 litre (fog fluid)
Fog output9000 cu ft (255m³) /min
Dimensions590 x 510 x 410mm (in flight case)
Weight25kg (in flight case)
