Description

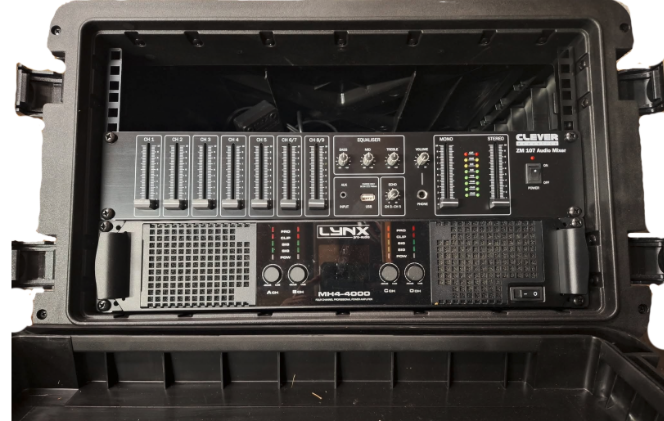

This setup features the high-efficiency Lynx Pro Audio MH4-4000 4-channel amplifier (Class H architecture with comprehensive real-time safety monitoring) running side-by-side with a premium multi-channel Clever Acoustics audio mixer. It offers clean mic preamps and flexible line routing, plug-and-play solution for background music systems and light-duty live sound
Lynx Pro Audio amp technical specifications:
– 4x 800Wrms @ 8Ω
– 4x 1000Wrms @ 4Ω
– 4x 1300Wrms @ 2Ω
– Bridge 2000Wrms @ 8Ω
– Bridge 2600Wrms @ 4Ω
– Frequency Response Bandwidth ± 0.25dB: 20 Hz – 20 kHz
– Phase Response 1 W 20 Hz – 20 kHz: ±15 deg
– Total Harmonic Distortion 20 Hz – 20 kHz: 700
– Crosstalk 20 Hz – 1 kHz: >75 dB
– Sensitivity (Rated Power): 0.775V / 1.0V / 1.44V
– Signal to Noise Ratio: >100 dB
– Operating Voltage (50-60 Hz): 230 V AC 50 Hz / 60 Hz
– Protections: Soft-start; Mute transient on/off; Overheating; DC; RF; Short circuit; Power overload
